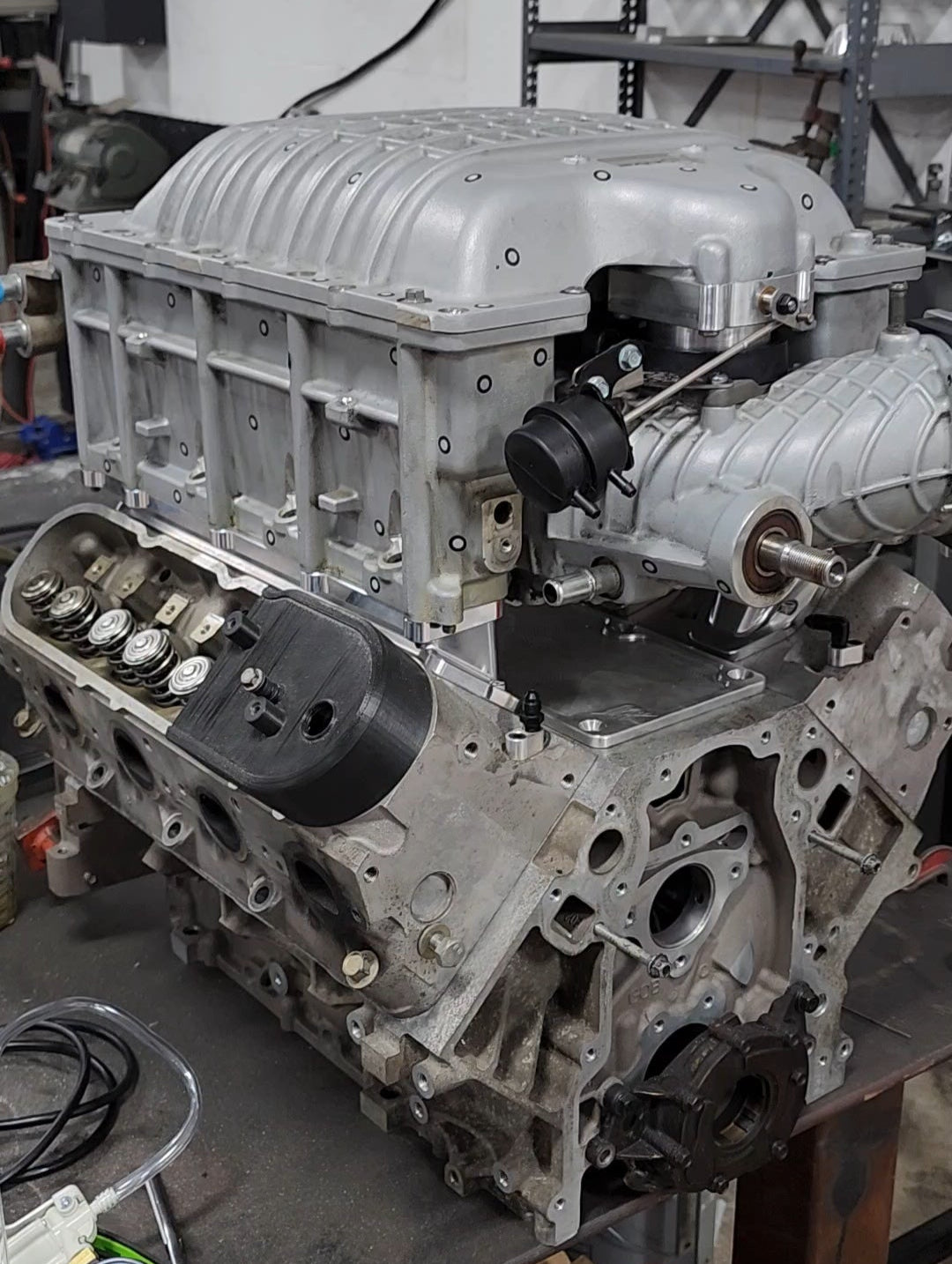

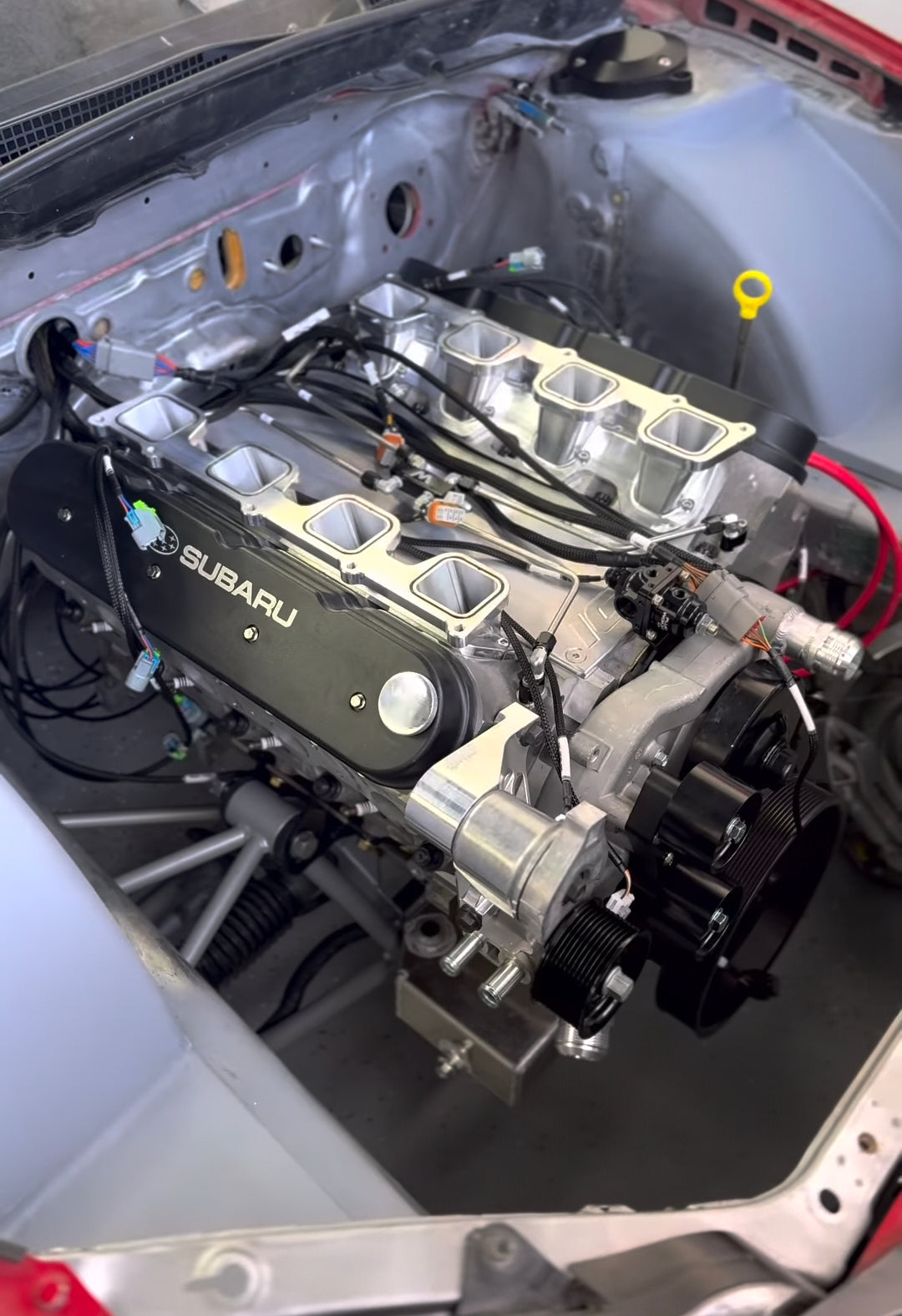

Bolt your newly acquired Dodge Hellcat supercharger to the LS rectangular port engine of your choice using these adapters. NOT designed for LT engines.

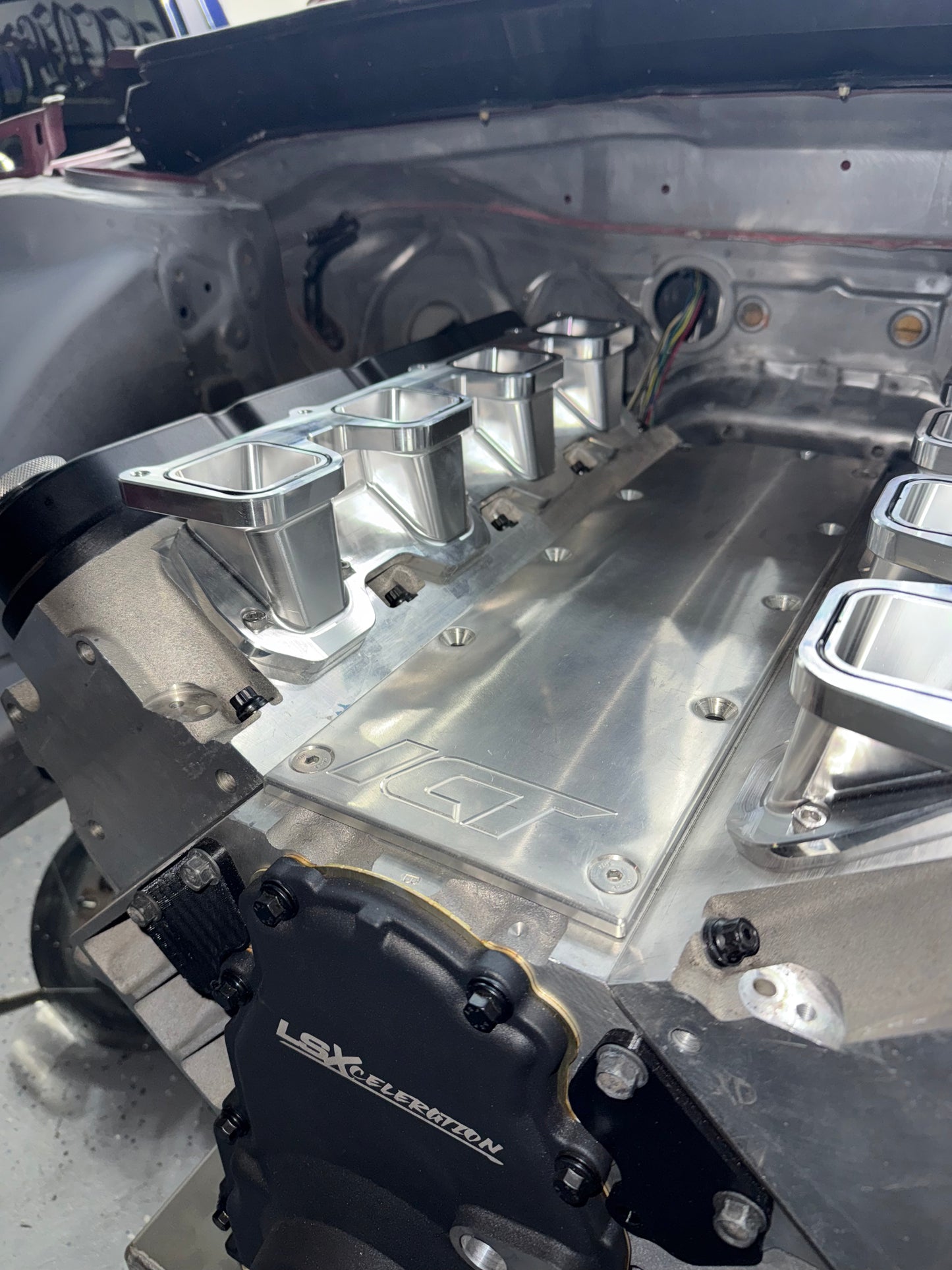

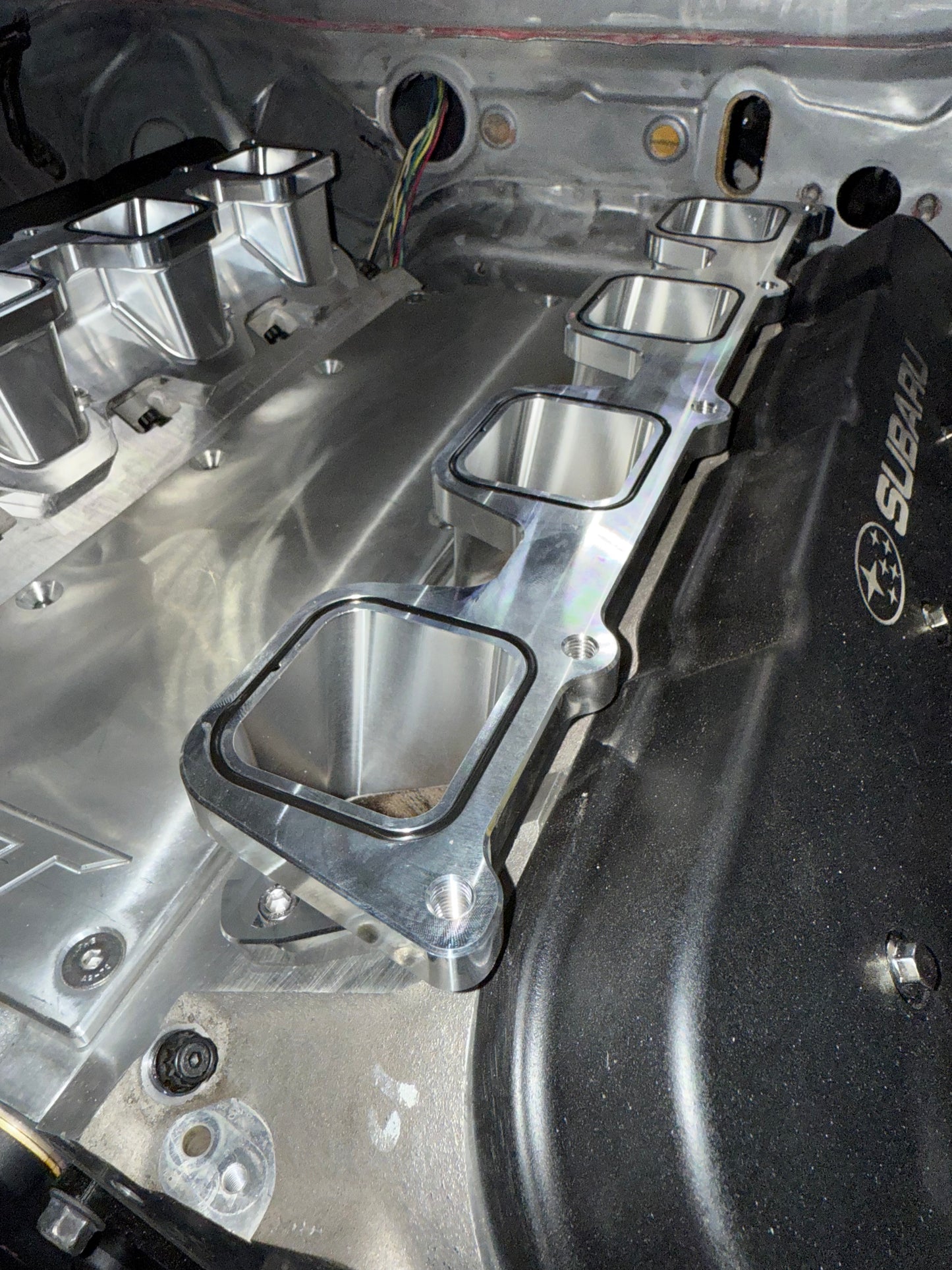

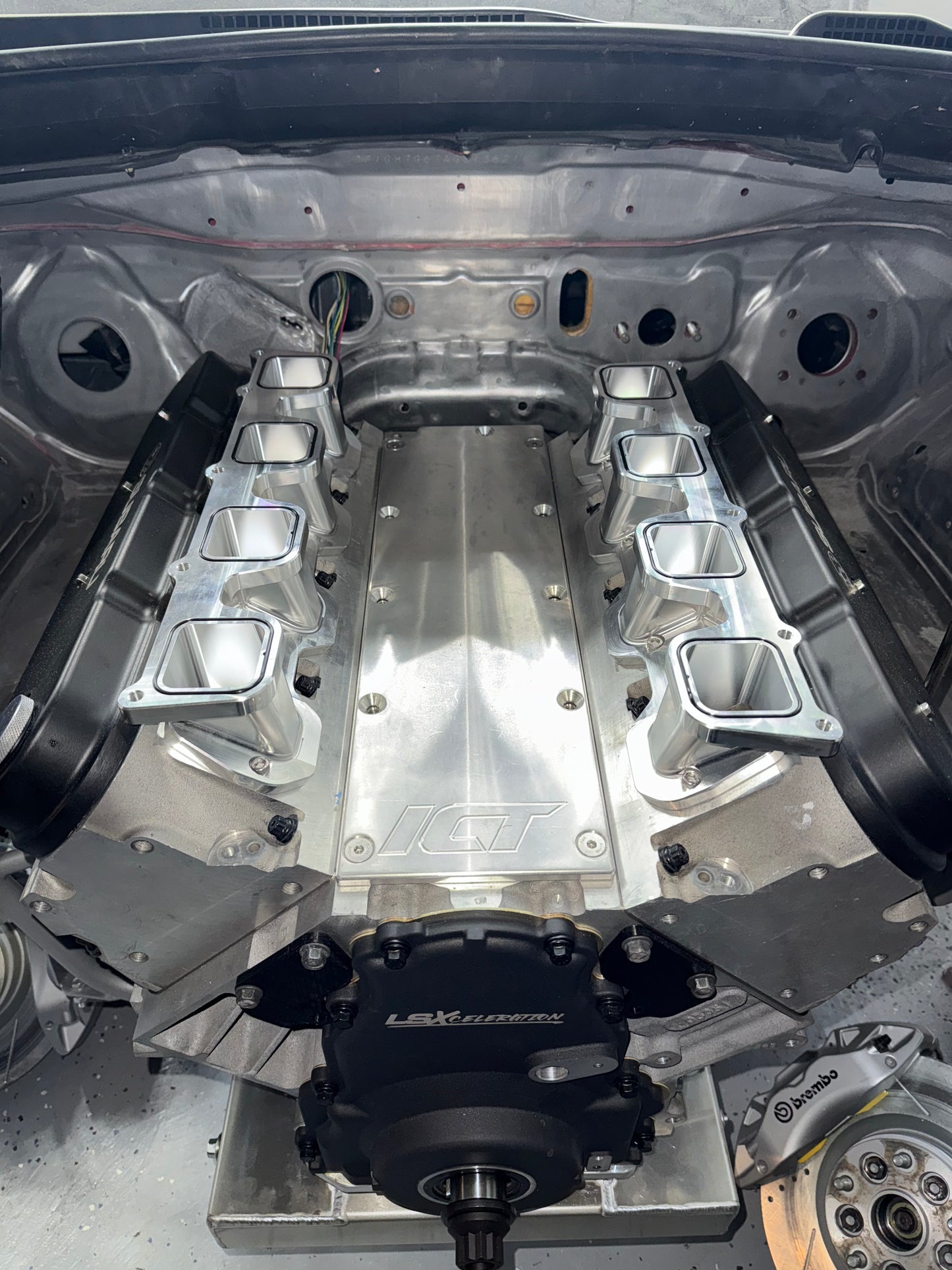

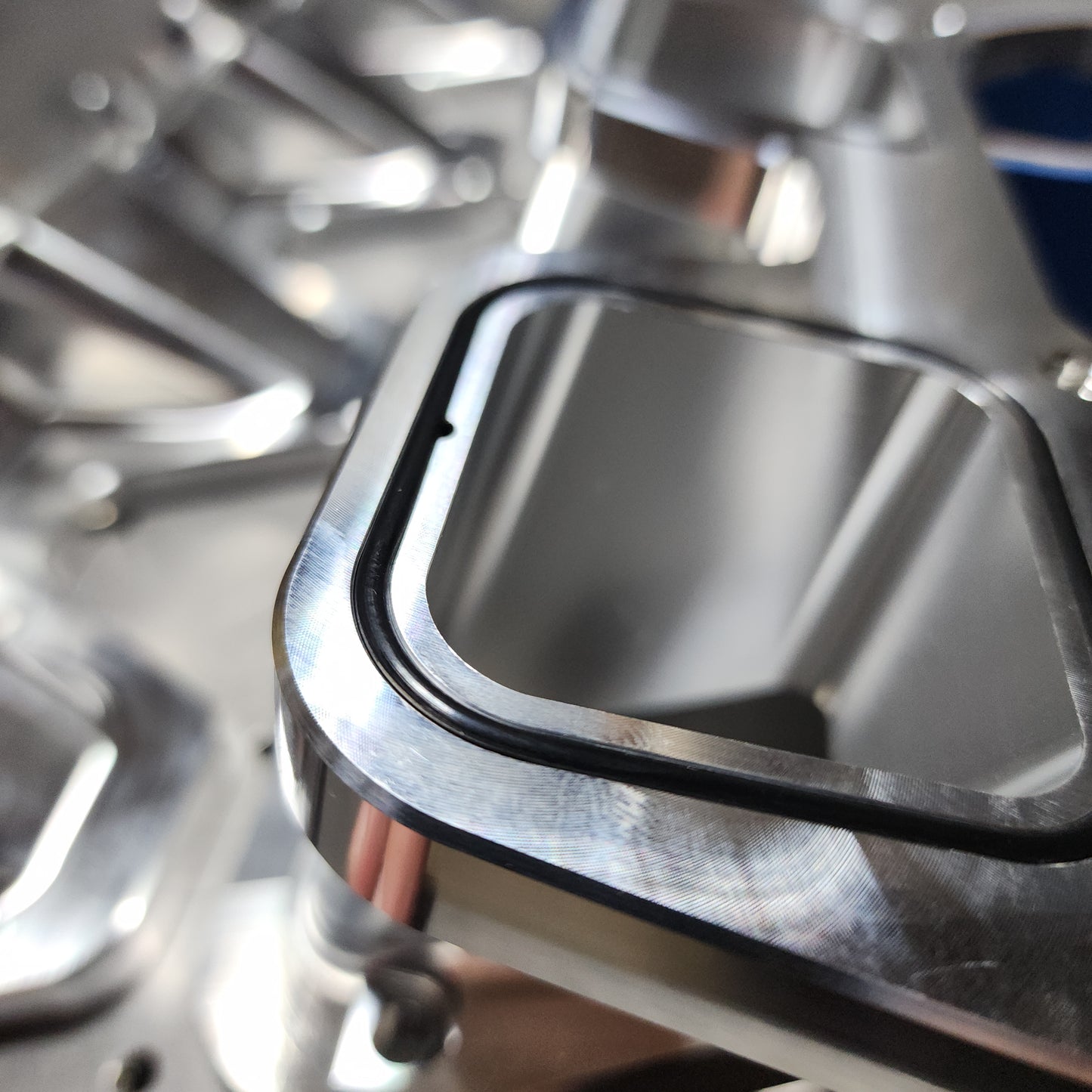

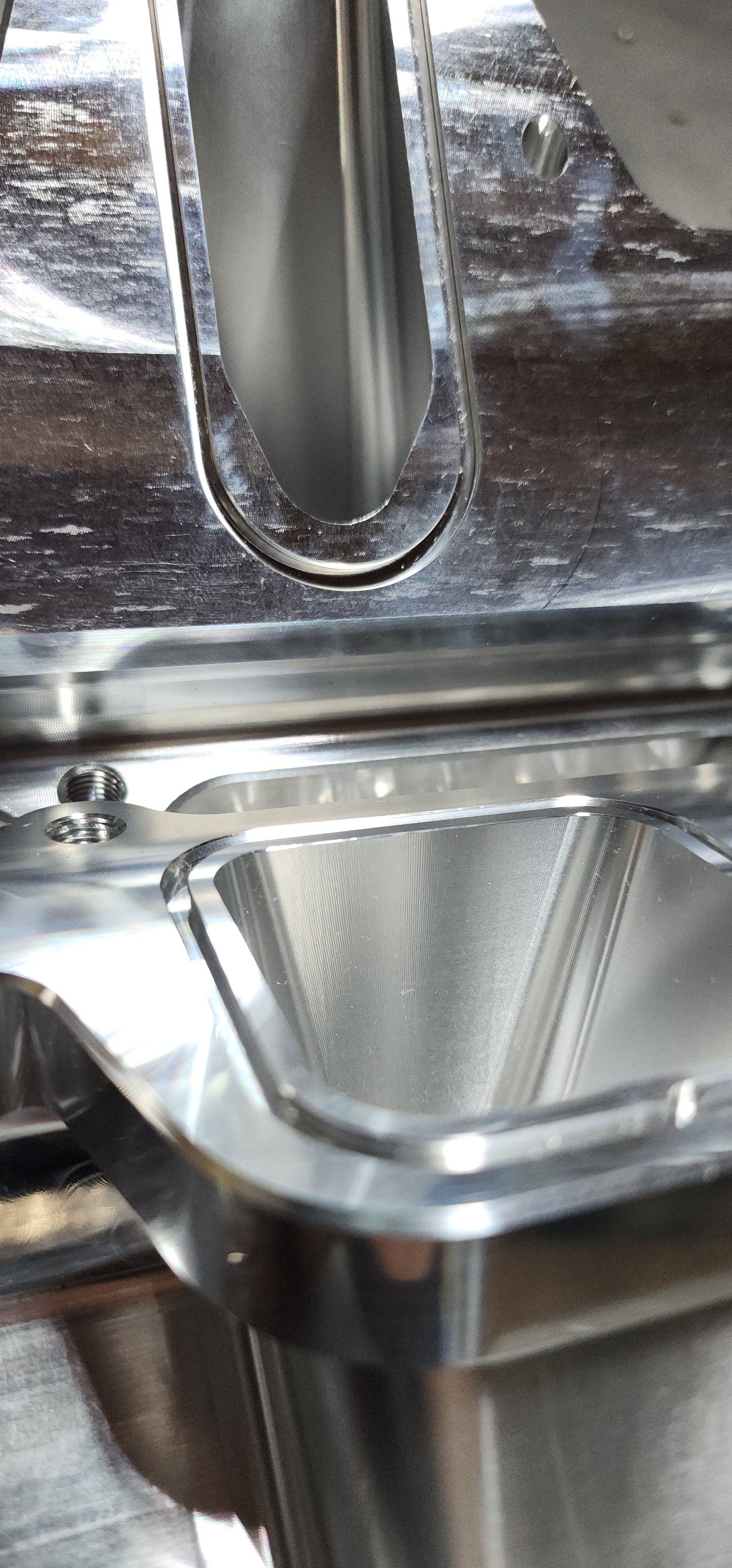

These adapters center the supercharger over the engine to ensure equal length ports left to right and near equal length front to rear. Sealing to the supercharger and to the heads is accomplished with the included hi temp o-rings. These o-rings fit tightly into specially machined grooves so you won't lose them during installation or removal.
Included in this adapter kit:

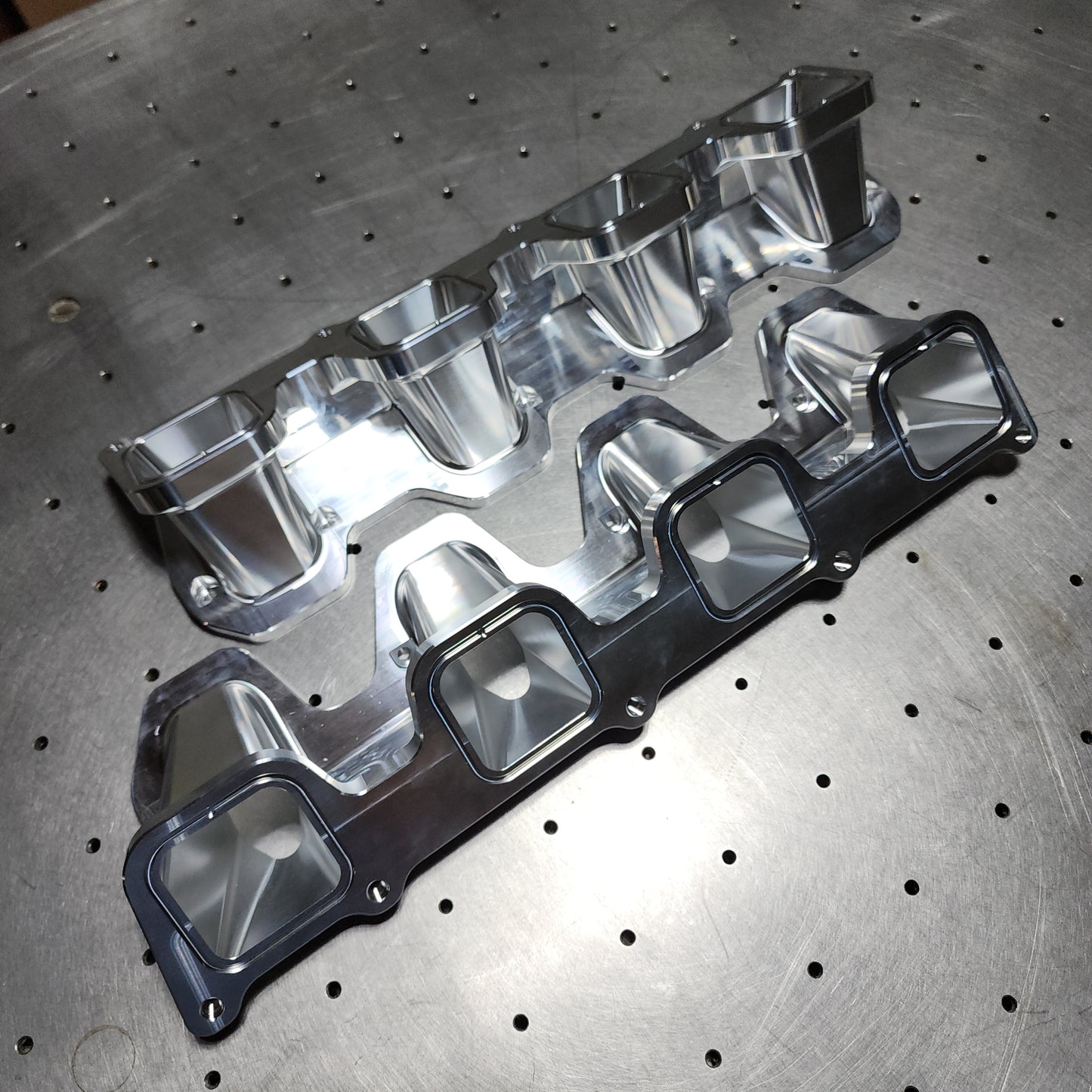

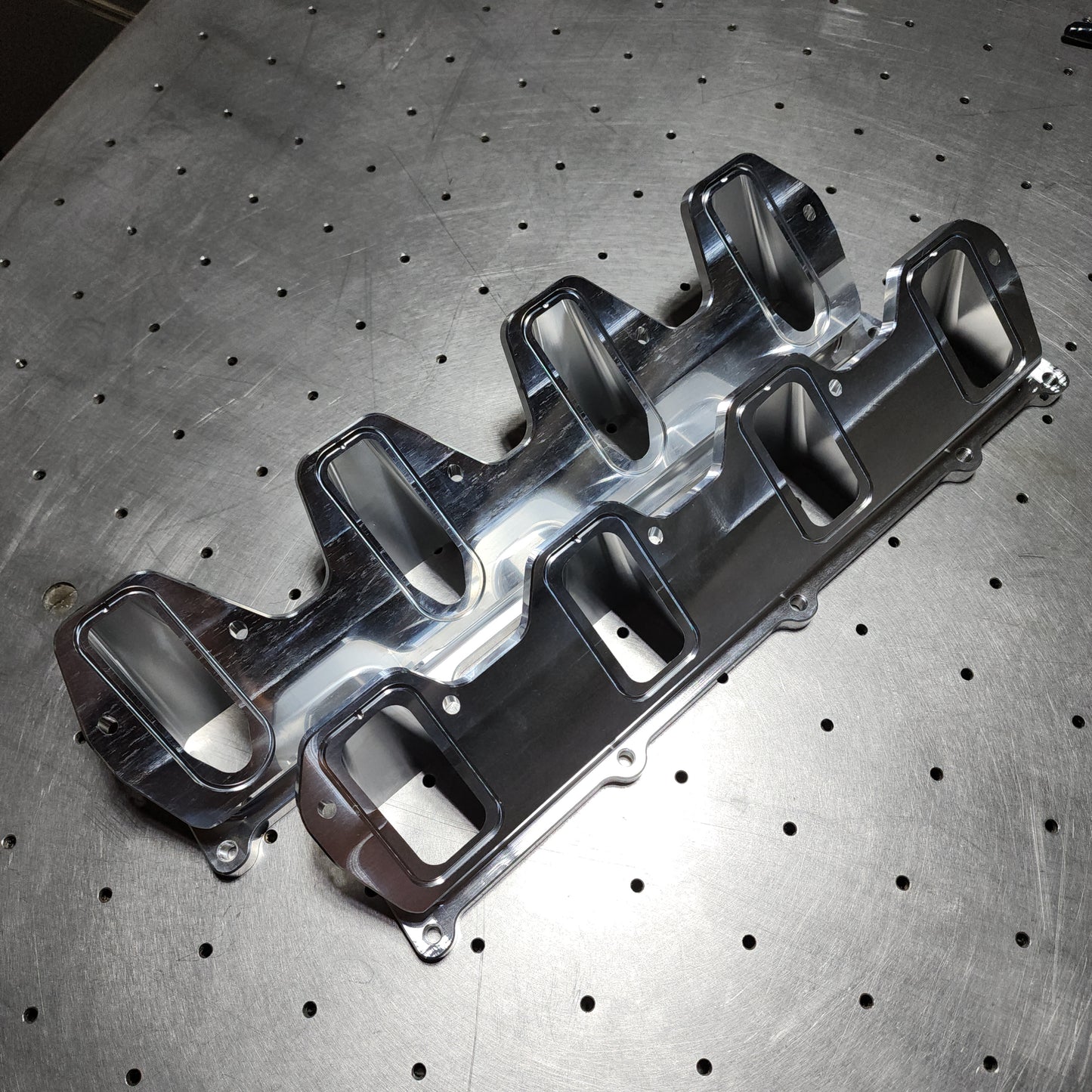

1 Pair of machined 6061 T651 aluminum adapters
8 Supercharger side seal rings
8 Head face seal rings
10 M6 socket head bolts for attaching to heads
Items you will need which are not included with the adapter kit:
Our supercharger pulley hub that is designed to work with a Griptec Hellcat 10 rib pulley. Please order the correct hub for your application
GM throttle body adapter flange to use your existing unit
(Optional) Connection wiring if you want to use the Hellcat throttle body
Connector Housing: TE Connectivity1-1419168-1
Connector Pins: 6x TE Connectivity1924782-1
Our vacuum actuated bypass valve to replace the OEM Dodge bypass
LSA accessory/pulley setup if you prefer 8 rib drive
(Optional) An electronic way to control your OEM Dodge bypass valve if you prefer to keep that. The current option on the market is Smoothboost if you want another item to wire and tune
